One Way Ratchet Clutch Bearing 6-80mm ID 600-5000r/min

Brand Name:	Suma
Model Number:	Eénrichtingsratel
MOQ:	3
Prijs:	$40-50

Detail Information

Product Description

Detail Information

Plaats van herkomst:

Jiangsu, China

Precisie -beoordeling:

Typ van afdichting:

niet-afgeziene eenrichtingsratel

Breedte:

6-26 mm

Overbrengingssnelheid binnen:

600-5000r/min

Overbrengingssnelheid buiten:

900-7500R/min

Koppel:

2.1-1063nm

Gewicht:

0,01-1.41kg

Materiaal:

GCR15

Binnendiameter:

680mm

Buitendiameter:

19-140 mm

Draagmoment:

0,18-58ncm

Asverkeerde opstelling:

± S/2

Boormaat:

680mm

Woningfit:

R6 -tolerantie in H7 -huisvesting

Laadsteun:

As en Radiaal

Markeren:

One Way Bearing 6-80mm ID

Ratchet Clutch Bearing 5000r/min

One Way Bearing with Warranty

Product Description

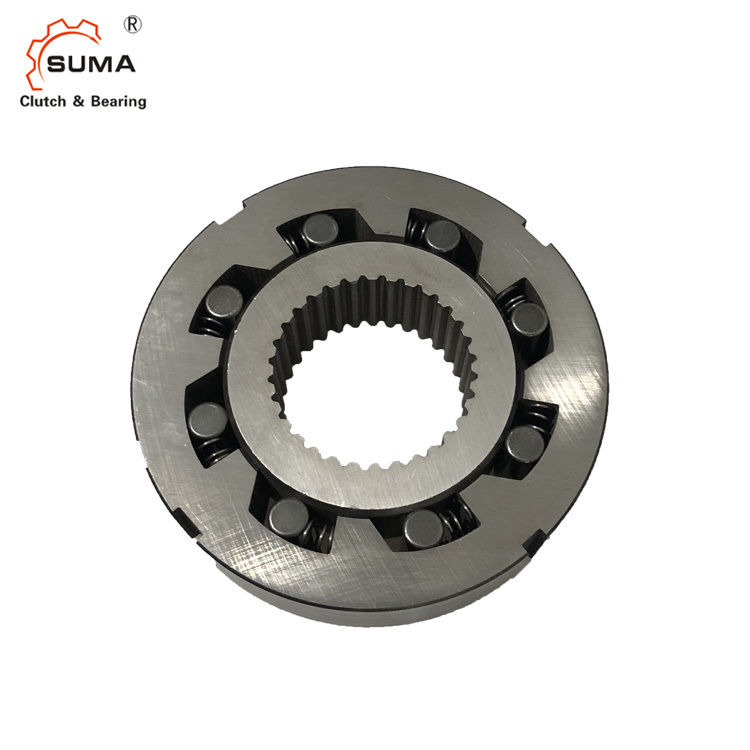

One Way Ratchet Clutch Bearing

Product Overview

This star wheel one way ratchet wheel is a roller type freewheel non-bearing supported. Bearings are required to support axial and radial loads, with lubrication and sealing provided by the installation. Nominal outside dimensions match series 62 ball bearings.

Key Features

Designed to be installed alongside series 62 bearings within the same location tolerances
Inner race is keyed to the shaft (except 6 mm bore)
Outer race features positive r6 tolerance for press fit in H7 housing
Can accept axial misalignment of inner and outer race of ± S/2
Requires strong outer housing to prevent expansion after assembly

Technical Specifications

Model	Customized based on customer specifications
Material	GCr15
Type	Round
Inner Diameter	6-80mm
Outer Diameter	19-140mm
Weight	0.01-1.41kg
Torque	2.1-1063Nm
Overrunning Speed	Inner Race: 600-5000r/min Outer Race: 900-7500KN
Applications	Industrial machines, reducers, variators, transmissions, etc.

Detailed Parameters

Type	dH7 [mm]	TKN1) [Nm]	nimax2) [min-1]	namax3) [min-1]	Dr6 [mm]	D5 [mm]	L [mm]	s [mm]	e [mm]	f [mm]	Weight [kg]	Drag Torque [Ncm]
Star wheel	6	2.1	5000	7500	19	15.8	6	0.3	0.6	0.3	0.01	0.18
Star wheel	8	3.8	4300	6500	24	20	8	1.3	0.6	0.6	0.02	0.24
Star wheel	10	6.8	3500	5200	30	25.9	9	1.3	0.6	0.6	0.03	0.36
Star wheel	12	13	3200	4800	32	28	10	1.3	0.6	0.6	0.04	0.48
Star wheel	15	14	2800	4300	35	31	11	1.4	0.6	0.6	0.05	0.7
Star wheel	20	40	2200	3300	487	40	14	2.4	0.8	0.8	0.12	1.4
Star wheel	25	56	1900	2900	52	45.9	15	2.4	0.8	0.8	0.14	2.4
Star wheel	30	90	1600	2400	62	55	16	2.4	0.8	1	0.22	7.8
Star wheel	35	143	1300	2000	72	64	17	2.5	0.8	1	0.31	9
Star wheel	40	185	1200	1800	80	72	18	2.5	0.8	1	0.39	10
Star wheel	45	218	1000	1600	85	77	19	2.5	1.2	1	0.44	11
Star wheel	50	230	950	1500	90	82	20	2.5	1.2	1	0.49	13
Star wheel	55	308	800	1300	100	90	21	2.5	1.2	1	0.66	14
Star wheel	60	508	700	1100	110	100	22	2.5	1.2	1.5	0.81	26
Star wheel	80	1063	600	900	140	128	26	2.5	1.2	1.5	1.41	58

Packaging & Shipping

Manufacturer Information

Changzhou Suma Precision Machinery Co., Ltd specializes in manufacturing various one way bearings, one way clutches, backstop clutches, overrunning clutches, needle roller bearings, and other high-technology bearings.
