Plum Shaft Coupling
Created with Pixso. GFC14x22 Flexible Jaw Shaft Coupling

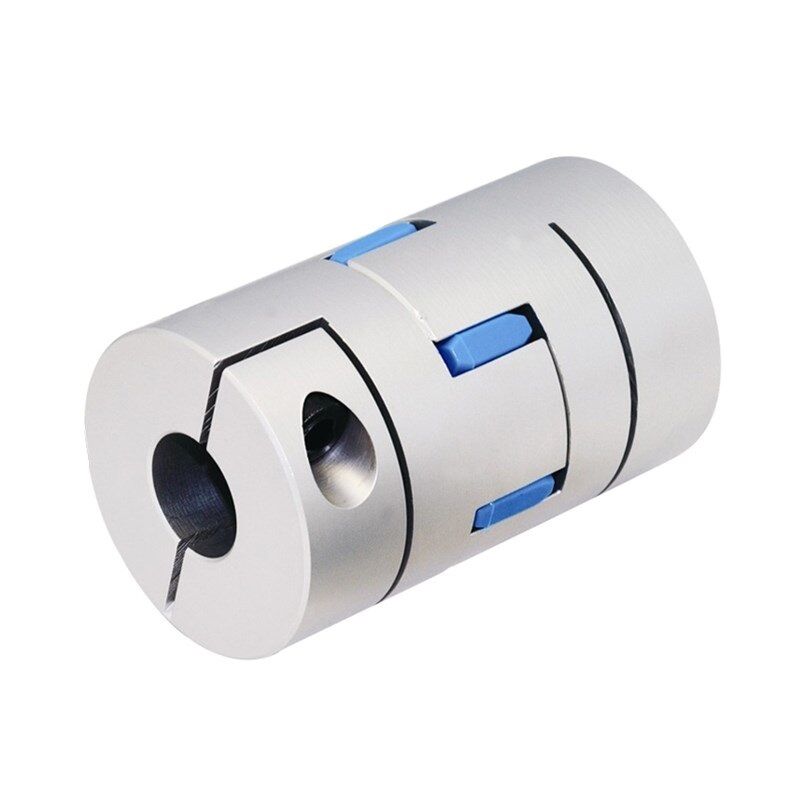

GFC14x22 Flexible Jaw Shaft Coupling

Merknaam: Tianniu
Modelnummer: GFC
MOQ: 1 STUKS
Prijs: negotiable
Levertijd: 3-5 werkdagen
Betalingsvoorwaarden: T/T, Western Union, MoneyGram, L/C, D/A, D/P
Gedetailleerde informatie
Plaats van herkomst:
China
Certificering:
ISO 9001
Model:
GFC KAAKKOPPELING
Garantie:
12 maanden
Boringmaat:
3-55mm
Lengte:
14-95 mm
Touque:
5-250
Verpakking Details:
Kartons door overzees die door vliegtuig verschepen
Levering vermogen:
10000 per maand
Markeren:

GFC14x22 flexibele schachtkoppeling

,

flexibele kaakkoppeling met garantie

,

een koppeling van de pruimas GFC14x22

Productbeschrijving

GFC-koppeling van de as Flexible-koppeling

GFC14x22 Flexible Jaw Shaft Coupling 0



Productkenmerken



>Hoge koppelstijfheid, kan nauwkeurig de rotatie van de as regelen, kan een hoge precisie regelen
> Ontworpen voor servomotor en stappenmotor
>Geen splitsing tussen de as en de verbinding met de beugel, algemeen voor positieve en negatieve rotatie
>Lag traagheid, geschikt voor hoge snelheid
>Het diafragma is gemaakt van veerstaal met een uitstekende vermoeidheidsbestandheid



Productenparameters



GFC14x22 Flexible Jaw Shaft Coupling 1
GFC14x22 Flexible Jaw Shaft Coupling 2
modelparameter
gemeenschappelijke boringsdiameter d1,d2
ΦD
L
LF
LP
F
M
koppel van de schroef
(N.M.)
GFC-14X22
3,4,5,6,6.35
14
22
14.3
6.6
5.0
M2.5
1.0
GFC-20x25
3,4,5,6,6.35,7,8,9,9.525,10
20
25
16.7
8.6
5.9
M3
1.5
GFC-20X30
3,4,5,6,6.35,7,8,9,9.525,10
20
30
19.25
8.6
5.9
M3
1.5
GFC-25X30
4,5,6,6.35,7,8,9,9.525,10,11,12
25
30
20.82
11.6
8.5
M4
2.5
GFC-25X34
4,5,6,6.35,7,8,9,9.525,10,11,12
25
34
22.82
11.6
8.5
M4
2.5
GFC-30x35
5,6,6.35,7,8,9,10,11,12,12.7,14,15,16
30
35
23
11.5
10
M4
2.5
GFC-30X40
5,6,6.35,7,8,9,10,11,12,12.7,14,15,16
30
40
25
11.5
10
M4
2.5
GFC-40X50
6,8,9,10,11,12,12.7,14,15,16,17,18,19,20,22,24
40
50
32.1
14.5
14
M5
7
GFC-40X55
6,8,9,10,11,12,12.7,14,15,16,17,18,19,20,22,24
40
55
34.5
14.5
14
M5
7
GFC-40X66
6,8,910,11,12,12.7,14,15,16,17,18,19,20,22,24
40
66
40
14.5
14
M5
7
GFC-55X49
10,11,12,12.7,14,15,16,17,18,19,20,22,24,25,28,30,32
55
49
32
16.1
13.5
M6
12
GFC-55X78
8,10,12,12.7,14,15,16,17,18,19,20,22,24,25,28,30,32
55
78
46.4
16.1
19
M6
12
GFC-65X80
14,15,16,17,18,19,20,22,24,25,28,30,32,35,38,40
65
80
48.5
17.3
14
M8
20
GFC-65X90
14,15,16,17,18,19,20,22,24,25,28,30,32,35,38,40
65
90
53.5
17.3
22.5
M8
20
GFC-80X114
19,20,22,24,25,28,30,32,35,38,40,42,45
80
114
68
22.5
16
M8
20
GFC-95X126
19,20,22,24,25,28,30,32,35,38,40,42,45,50,55
95
126
74.5
24
18
M10
30
modelparameter
Nominaal koppel
(N.M.) *
toegestane excentriciteit
(mm) *
toegestane buighoek
(°) *
toegestane axiale afwijking
(mm) *
maximale snelheid
rpm
statische torsiestijfheid
(N.M/rad)
moment van traagheid
(Kg.M2)
gewicht
(g)
GFC-14X22
5.0
0.1
1
±02
10000
50
1.0x10-6
10
GFC-20X25
5.0
0.1
1
±02
10000
50
1.0x10-6
15
GFC-20X30
5.0
0.1
1
^02
10000
53
1.1x10-6
19
GFC-25X30
10
0.1
1

10000
90
5.2X10-6
33
GFC-25X34
10
0.1
1
£) 2
10000
90
5.2x10-6
42
GFC-30X35
12.5
0.1
1
±02
10000
123
6.2x10-6
50
GFC-30x40
12.5
0.1
1
102
10000
123
6.2x10-6
60
GFC-40X50
17
0.1
1

8000
1100
3.8x10-5
115
GFC-40X55
17
0.1
1
±02
8000
1100
3.8x10-5
127
GFC-40X66
17
0.1
1

7000
1140
3.9x10-5
154
GFC-55X49
45
0.1
1
±02
6500
2350
1.6x10-3
241
GFC-55X78
45
0.1
1
102
6000
2500
1.6x10-3
341
GFC-65X80
108
0.1
1
±02
5500
4500
3.8x10-3
433
GFC-65X90
108
0.1
1
±02
5500
4800
3.8x10-3
583
GFC-80X114
145
0.1
1
£) 2
4500
5000
1.8x10-3
1650
GFC-95X126
250
0.1
1
±02
4000
5000
2.0x10-3
1000
